Bovie Bantam | PRO HF Desiccator Unit
Bovie Bantam | PRO HF Desiccator Unit

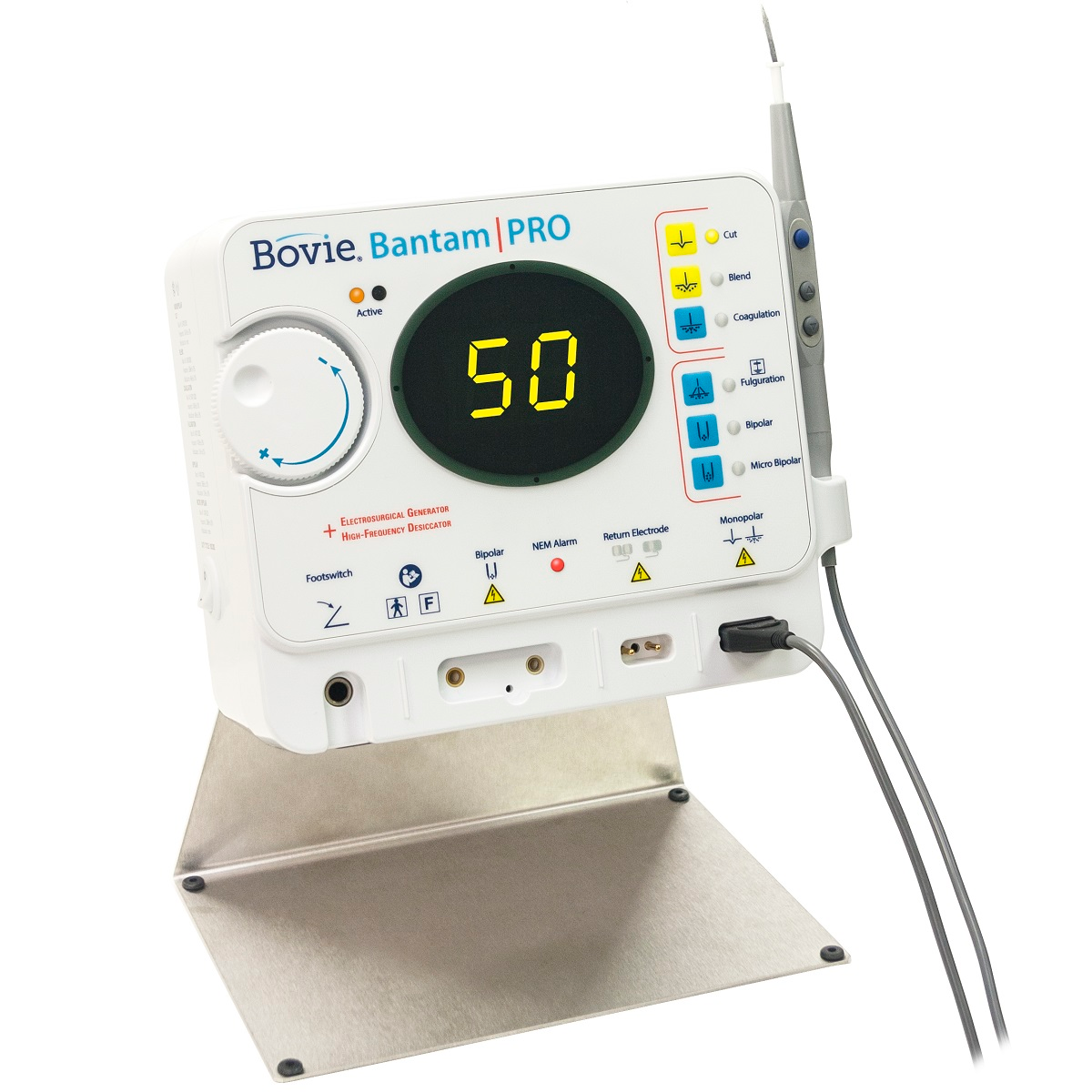

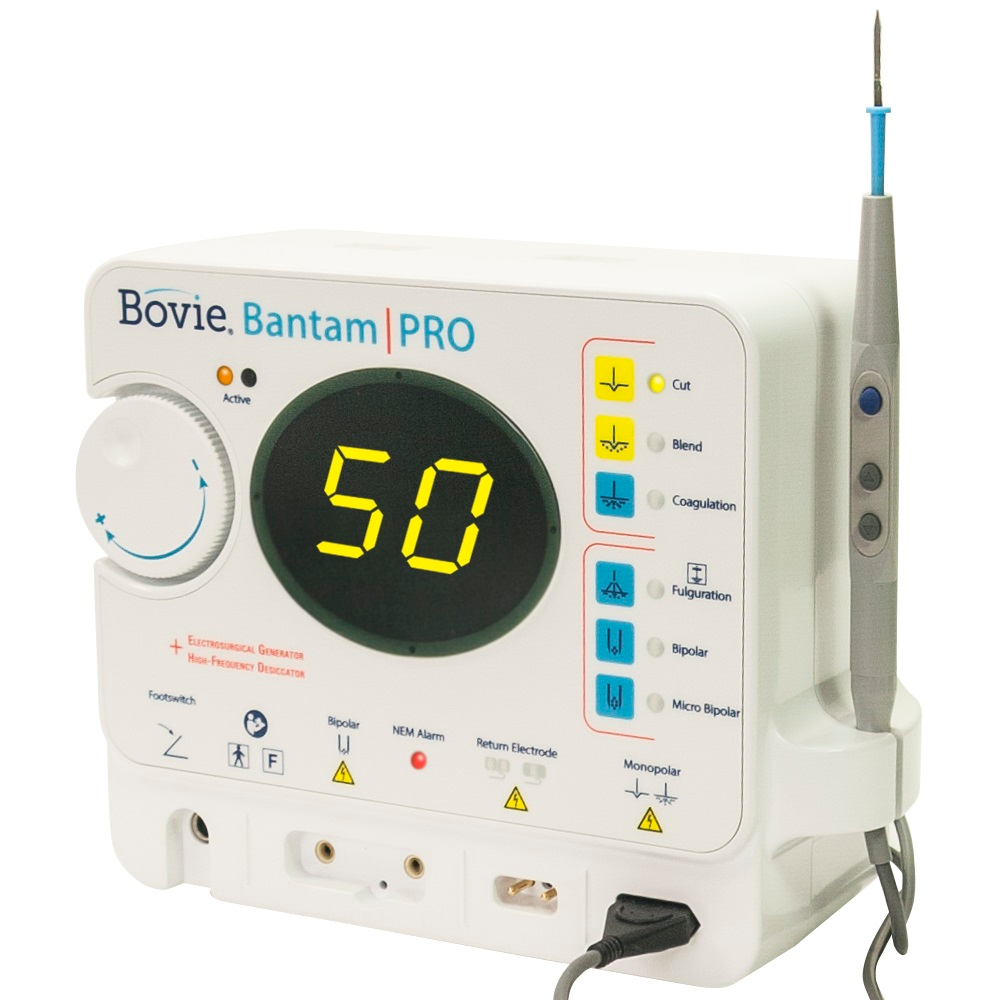

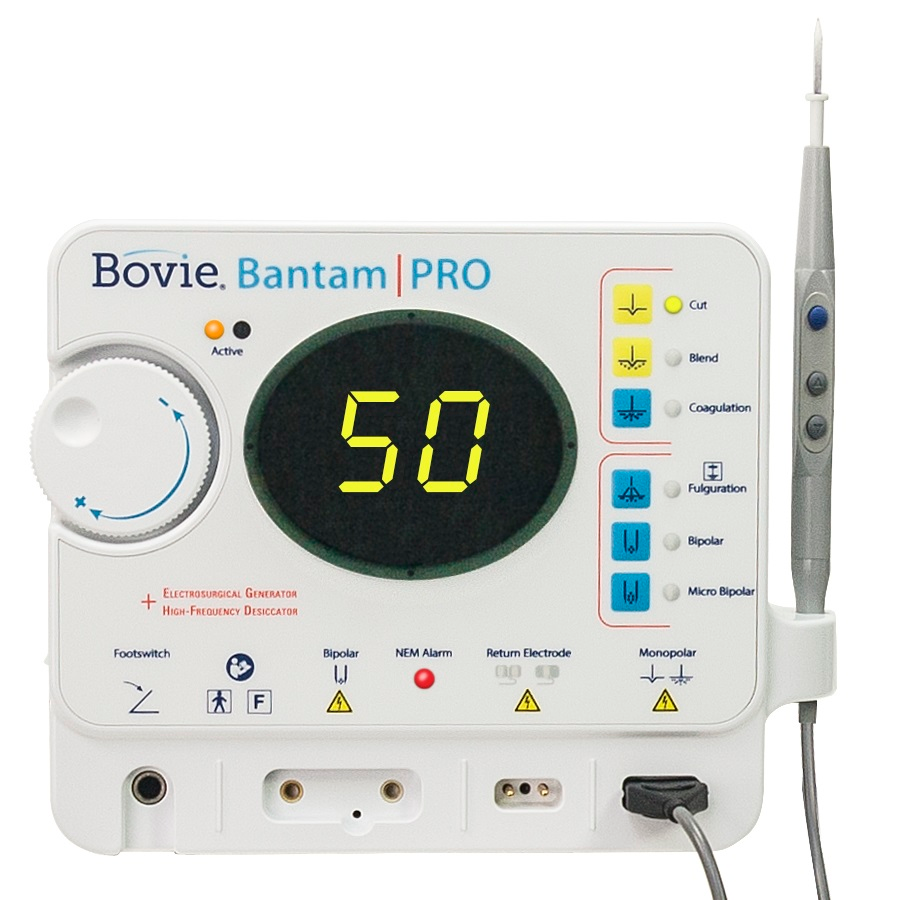

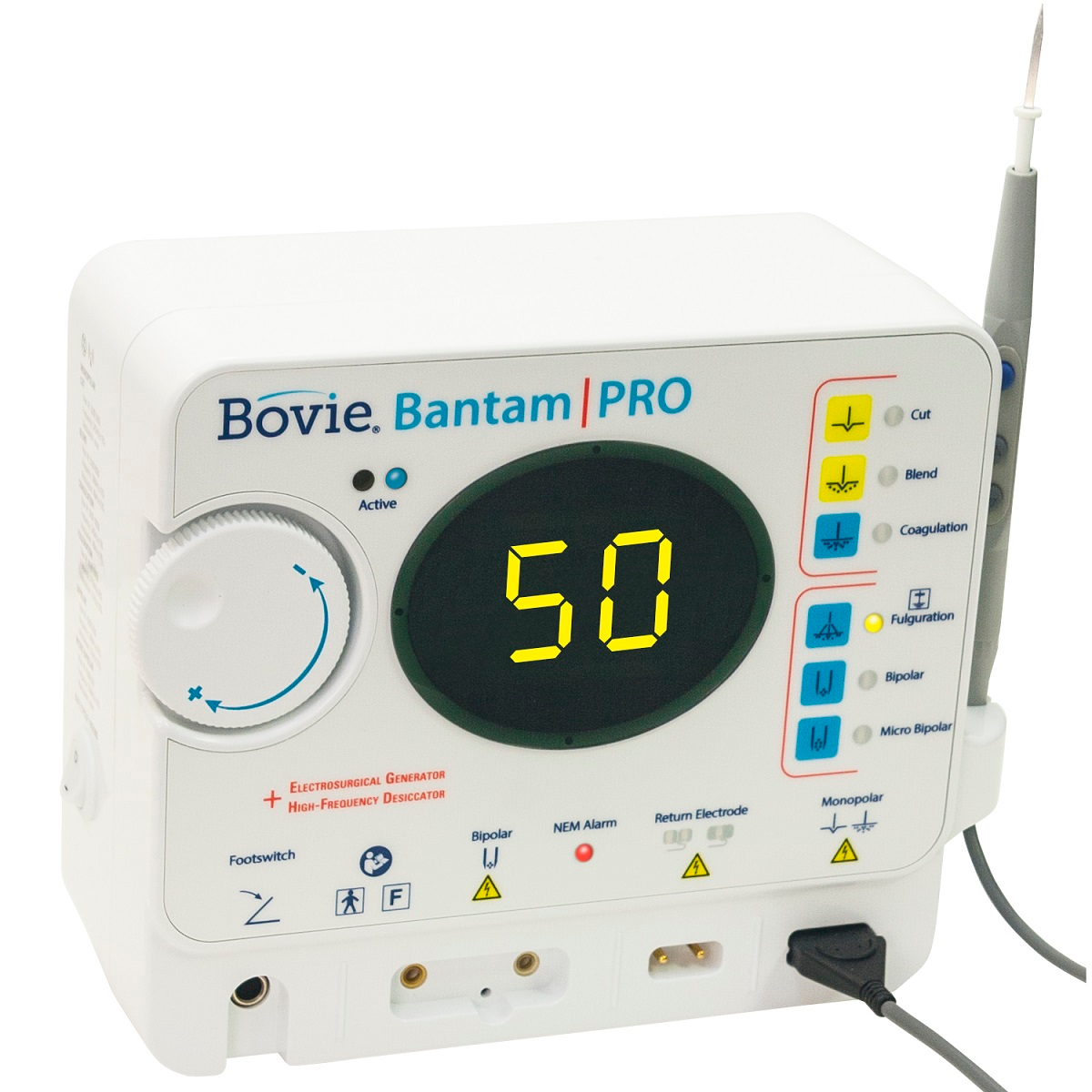

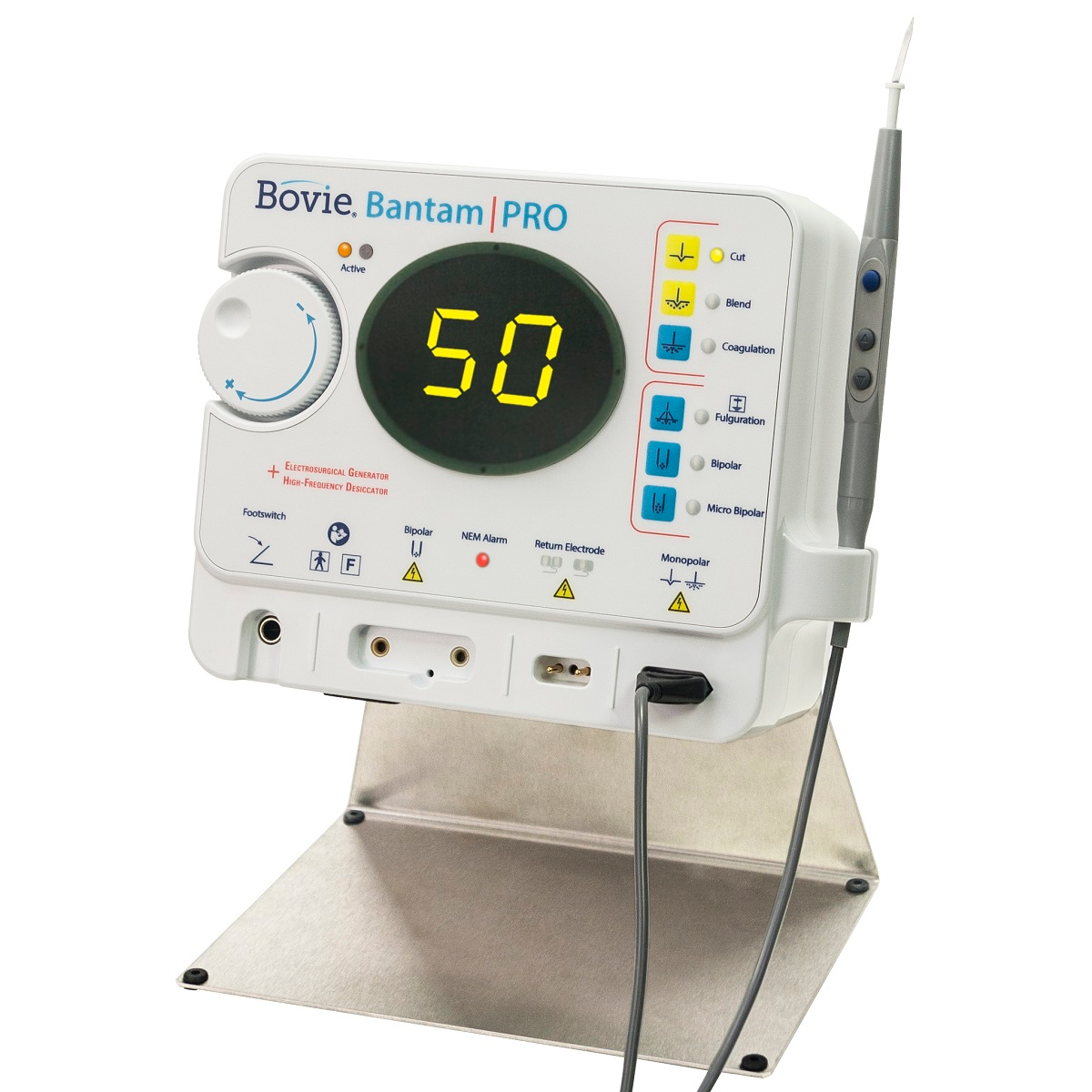

Bovie Bantam | PRO (A952)
A powerful in-clinic electrosurgical unit with the ability to cut and coagulate.
The Bovie Bantam PRO is a high frequency desiccator that also has cutting ability. The unit provides 50 watts of cutting power and coagulation modes, plenty of power for most procedures performed in the doctor’s office. Power is adjustable in 1/10th watt increments from 0 to 10 watts, for the most accurate output available.
You might say the Bovie Bantam | PRO has a split personality. One half of the unit is a high frequency desiccator. The other half is a Bovie Generator, giving you 50 watts of cutting power and coagulation capabilities. The Bovie Bantam | PRO gives you plenty of power for most cutting procedures performed in the clinic. The unit comes with a suite of accessories and is ready to use straight from the box.
Features:
Large, illuminated LCD display
Self-test circuits
Audible tones
Monopolar & bipolar outputs
Higher resolution in bipolar mode
Rotary power dial
Isolated circuitry
Digital error detection
Specification:
Output Power
Cut: 50 watts (0-10 watts in 1/10th watt increments)
Blend: 50 watts
Coagulation: 50 watts
Fulguration: 40 watts
Bipolar & Micro Bipolar: 40 watts
Dimensions
Height: 18.8cm
Width: 22.8cm
Depth: 10.5cm
Weight: 2.26kg
Output Frequency
304-451kHz
Line Voltage
100-240VAC
Line Frequency
50-60Hz
Outstanding Warranty
Industry leading 4-year warranty
Kit Inclusions
Bovie Bantam | PRO (A952) electrosurgical generator x 1
A902 power control pencil x 1
A910 disposable sheath x 2
A910ST sterile disposable sheath x 2
A804 non-sterile single use sharp dermal tips x 5
A805 sterile single use sharp dermal tips x 2
A806 non-sterile single use blunt dermal tips x 5
A807 sterile single use blunt dermal tips x 2
A806DE non-sterile single use DERM-Elite premium blunt dermal tips x 2
A807DE sterile single use DERM-Elite premium blunt dermal tips x 2
ES01 sterile single use blade electrode x 3
ES02 sterile single use needle electrode x 1
ES20 sterile single use ball electrode x 1
ESRE single use split grounding pad x 5
A1252C reusable grounding cord x 1
A837 wall mount kit x 1
AC power cord x 1
User guide x 1
Bovie Product Features
Bovie Product Features
The Bovie Cautery range features a comprehensive selection of electrosurgical and electrocautery products from Bovie Medical, a renowned leader in the field. With a legacy of excellence, Bovie Medical has been at the forefront of manufacturing reliable electrosurgical machines since the 1920s when Dr Bovie and Dr Cushing first used an electrosurgical device in neurosurgical cases.
Today Bovie electrosurgical units have become indispensable tools for the modern surgeon and have revolutionised procedures across many surgical fields.
Bovie units are unique in that the same 3-Button Pencil works with or without the optional footswitch. Simply plug in the optional footswitch and you are ready to go! The user has complete control including up/down power from the handpiece as well as activation.
Features
- More user friendly with features that can save you time and money
- Less to do with fewer steps to accomplish the same procedures
- Less to buy, fewer accessories needed for additional functionality
- 3-Button Pencil works with or without optional footswitch
- Digital Error Detection
- Latest in chip technology
- Large, rotary dial, provides quick operating-mode selections
- Large digital screen shows power level
- Handpieces may be autoclaved
- 4 Year Warranty
Cleaning & Maintenance
Cleaning & Maintenance
Periodic Check
Bovie Medical Corporation recommends that you complete periodic inspection and performance testing.
Perform inspections and performance testing every six months. A qualified biomedical technician should
conduct this testing to ensure that the unit is operating effectively and safely. After the unit has passed the
preliminary functional test, it is ready for performance testing. A qualified biomedical engineer who is
thoroughly familiar with electrosurgical devices should conduct this testing. The testing should include checking all modes of operation for proper function and power output.
Maintenance
The Bovie electrosurgical devices require periodic cleaning. Post-procedure cleanup is simple and fast due to non-absorbent ABS case, and the use of external liquid resistant membrane switches that can be wiped clean with a damp cloth. When the unit requires cleaning, simply utilize a soap and water solution and wipe clean. Be careful not to allow any fluid to enter into the unit through the various openings. Dry the unit with a clean, low free cloth.
Sterilisation & cleaning of accessories
The Bovie standard accessories are supplied sterile and non-sterile. The handpiece may be cleaned and sterilized. Refer to the instruction sheet that accompanies the electrode, NE and handpiece for specific instructions on cleaning and/or sterilization. We recommend that all contaminated electrodes and handpieces are sterilised prior to disposal. Read the accessories’ IFU for additional cleaning, disinfection and sterilization details.
Warranty
Warranty
- Bovie electrosurgical units are backed by an industry leading 4-year warranty.
- The handpiece is covered under
warranty for a period of 1-year or 25 steam autoclave cycles, whichever comes first.
