Bovie DERM 942 HF Desiccator Unit
Bovie DERM 942 HF Desiccator Unit

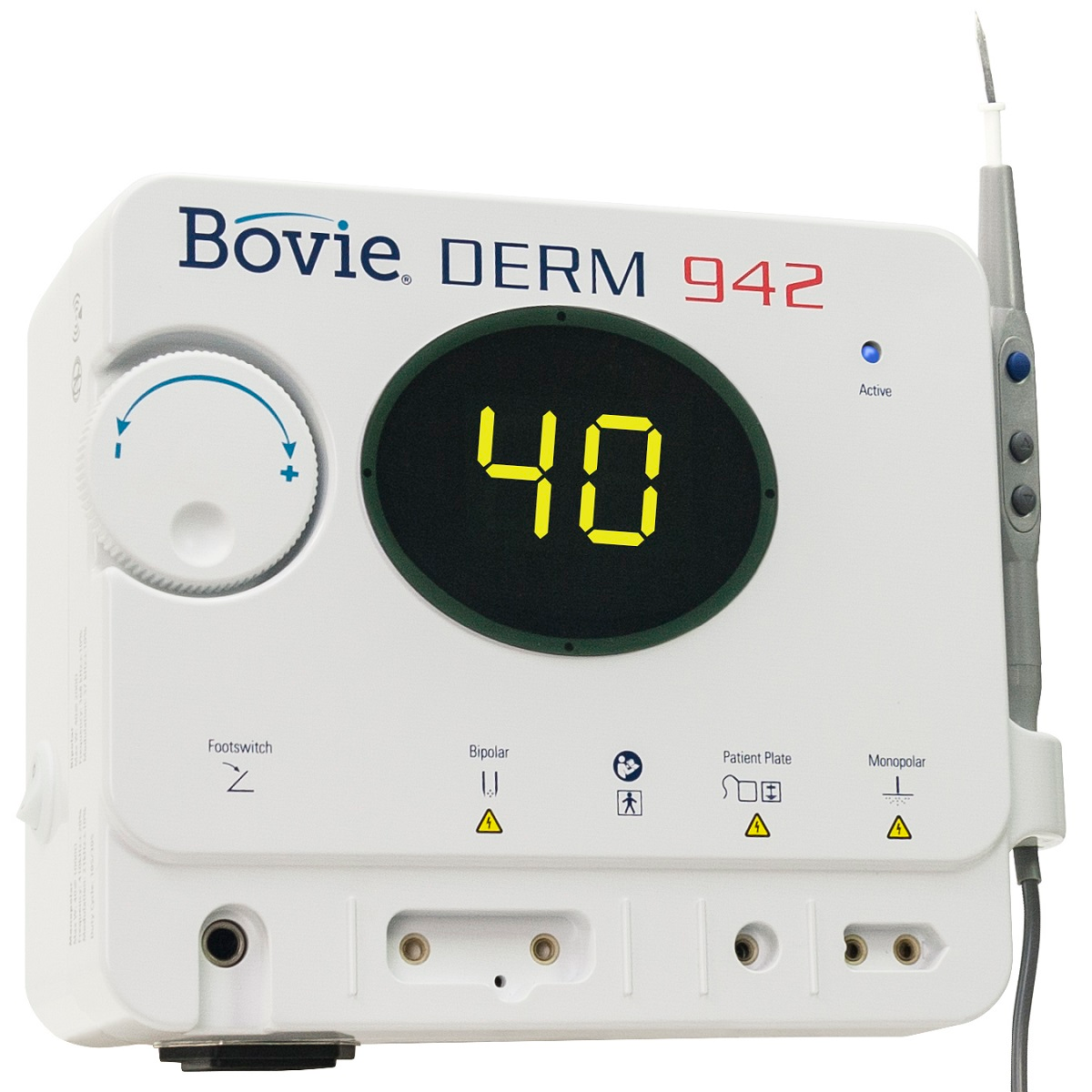

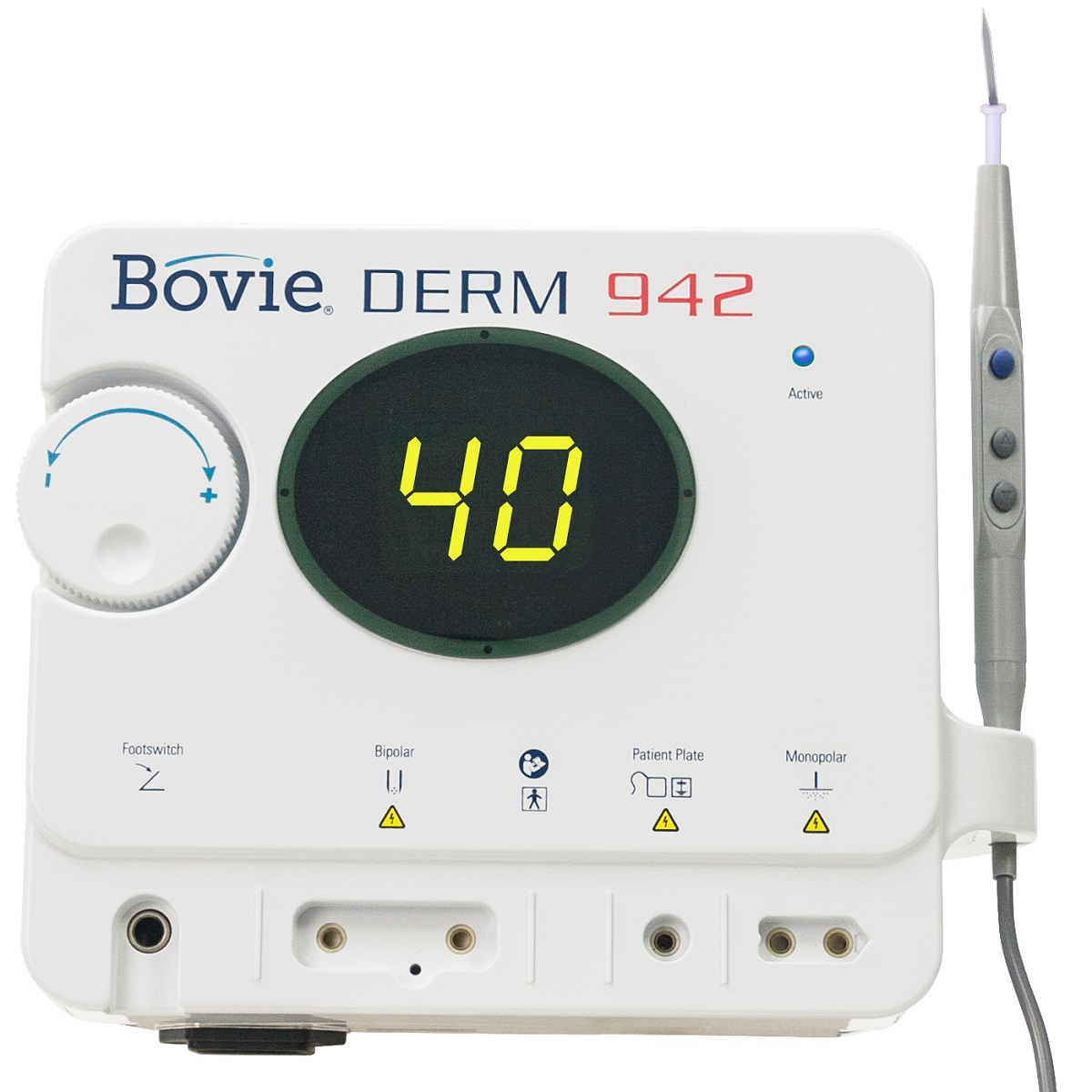

Bovie DERM 942
A modern and professional looking unit with the power to perform in any situation.
The Bovie DERM 942 High Frequency Desiccator has been designed and engineered to be reliable and durable. Safety features such as digital error detection continuously monitors every aspect of the unit's output and instantly disables output and displays an error code is any issues are detected. The Bovie DERM 942 unit is built to last due to the incorporation of the latest in digital chip technology and reduction in the number of internal parts, thereby generating less internal heat.
Post-procedure and long-term clean-up are simplified by its non-absorbing, non-staining, high impact plastic case. Power is adjustable in 1/10th watt increments in the first 10 watts, in monopolar and bipolar. The Bovie DERM 942 is a ground reference unit, which means no grounding pad is required reducing overall device ownership cost.
Features:
Large and simple, illuminated display
Self-test circuits
Audible tones
Monopolar & bipolar outputs- wide range of accessories available
Higher resolution in bipolar mode
Rotary power dial
Isolated circuitry
Digital error detection
Specifications:
Output Power
To 40 watts (0-10 watts in 1/10th watt increments on both monopolar & bipolar settings)
Dimensions
Height: 18.8cm
Width: 22.8cm
Depth: 10.5cm
Weight: 2.26kg
Output Frequency
328-492kHz
Line Voltage
100-240VAC
Line Frequency
50-60Hz
Outstanding Warranty
Industry leading 4-year warranty
Bovie DERM 942 Kit Includes;
A942 electrosurgical generator x 1
A902 power control pencil x 1
A910 disposable sheath x 2
A804 non-sterile single use sharp dermal tips x 5
A805 sterile single use sharp dermal tips x 2
A806 non-sterile single use blunt dermal tips x 5
A807 sterile single use blunt dermal tips x 2
A806DE non-sterile single use DERM-Elite premium blunt dermal tips x 2
A807DE sterile single use DERM-Elite premium blunt dermal tips x 2

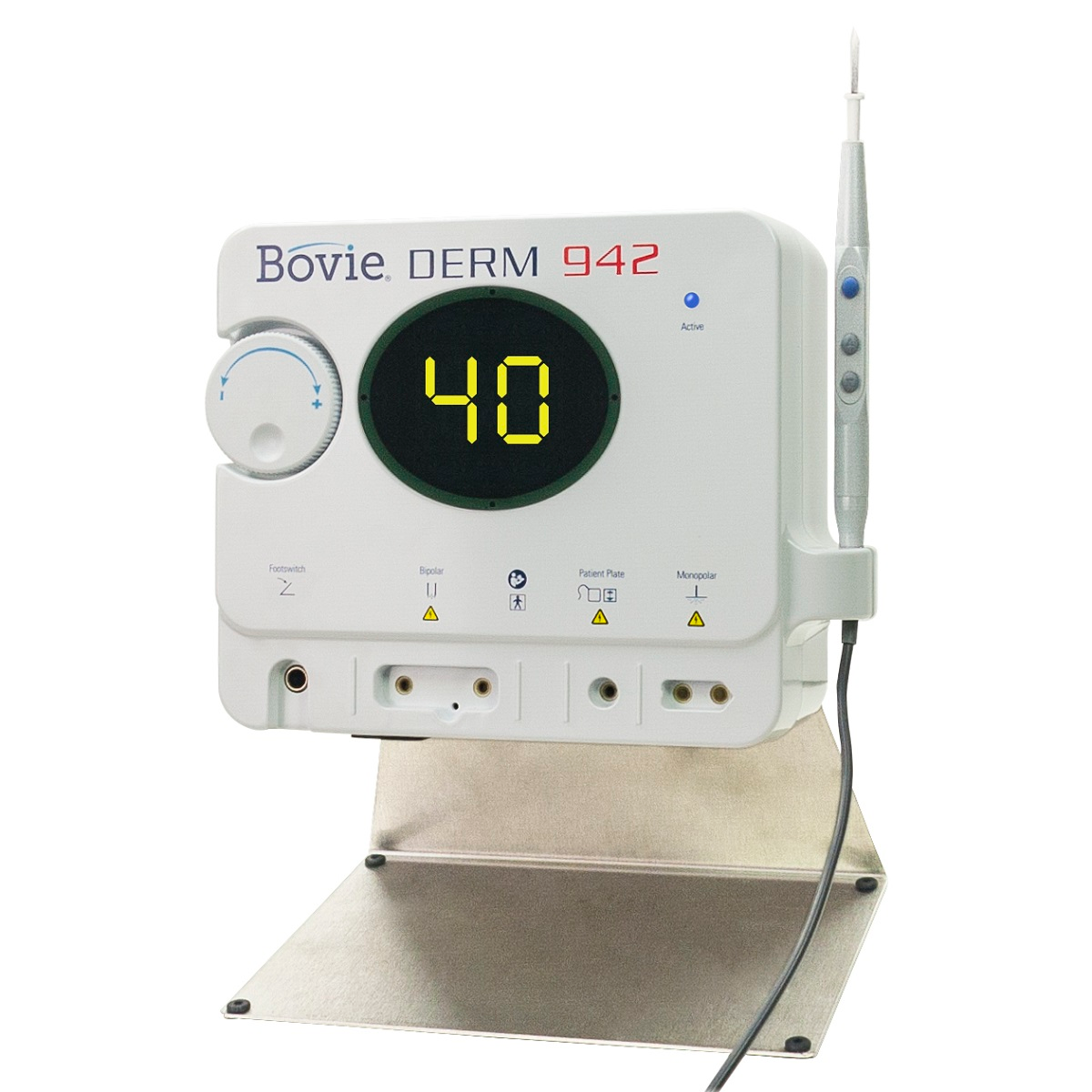

A837 wall mount kit x 1
AC power cord x 1
User guide x 1
Downloads
Click here to view Bovie DERM 942 Brochure
Click here to view Smoke Shark II Brochure
Bovie Product Features
Bovie Product Features
The Bovie Cautery range features a comprehensive selection of electrosurgical and electrocautery products from Bovie Medical, a renowned leader in the field. With a legacy of excellence, Bovie Medical has been at the forefront of manufacturing reliable electrosurgical machines since the 1920s when Dr Bovie and Dr Cushing first used an electrosurgical device in neurosurgical cases.
Today Bovie electrosurgical units have become indispensable tools for the modern surgeon and have revolutionised procedures across many surgical fields.
Bovie units are unique in that the same 3-Button Pencil works with or without the optional footswitch. Simply plug in the optional footswitch and you are ready to go! The user has complete control including up/down power from the handpiece as well as activation.
Features
- More user friendly with features that can save you time and money
- Less to do with fewer steps to accomplish the same procedures
- Less to buy, fewer accessories needed for additional functionality
- 3-Button Pencil works with or without optional footswitch
- Digital Error Detection
- Latest in chip technology
- Large, rotary dial, provides quick operating-mode selections
- Large digital screen shows power level
- Handpieces may be autoclaved
- 4 Year Warranty
Cleaning & Maintenance
Cleaning & Maintenance
Periodic Check
Bovie Medical Corporation recommends that you complete periodic inspection and performance testing.
Perform inspections and performance testing every six months. A qualified biomedical technician should
conduct this testing to ensure that the unit is operating effectively and safely. After the unit has passed the
preliminary functional test, it is ready for performance testing. A qualified biomedical engineer who is
thoroughly familiar with electrosurgical devices should conduct this testing. The testing should include checking all modes of operation for proper function and power output.
Maintenance
The Bovie electrosurgical devices require periodic cleaning. Post-procedure cleanup is simple and fast due to non-absorbent ABS case, and the use of external liquid resistant membrane switches that can be wiped clean with a damp cloth. When the unit requires cleaning, simply utilize a soap and water solution and wipe clean. Be careful not to allow any fluid to enter into the unit through the various openings. Dry the unit with a clean, low free cloth.
Sterilisation & cleaning of accessories
The Bovie standard accessories are supplied sterile and non-sterile. The handpiece may be cleaned and sterilized. Refer to the instruction sheet that accompanies the electrode, NE and handpiece for specific instructions on cleaning and/or sterilization. We recommend that all contaminated electrodes and handpieces are sterilised prior to disposal. Read the accessories’ IFU for additional cleaning, disinfection and sterilization details.
Warranty
Warranty
- Bovie electrosurgical units are backed by an industry leading 4-year warranty.
- The handpiece is covered under
warranty for a period of 1-year or 25 steam autoclave cycles, whichever comes first.
