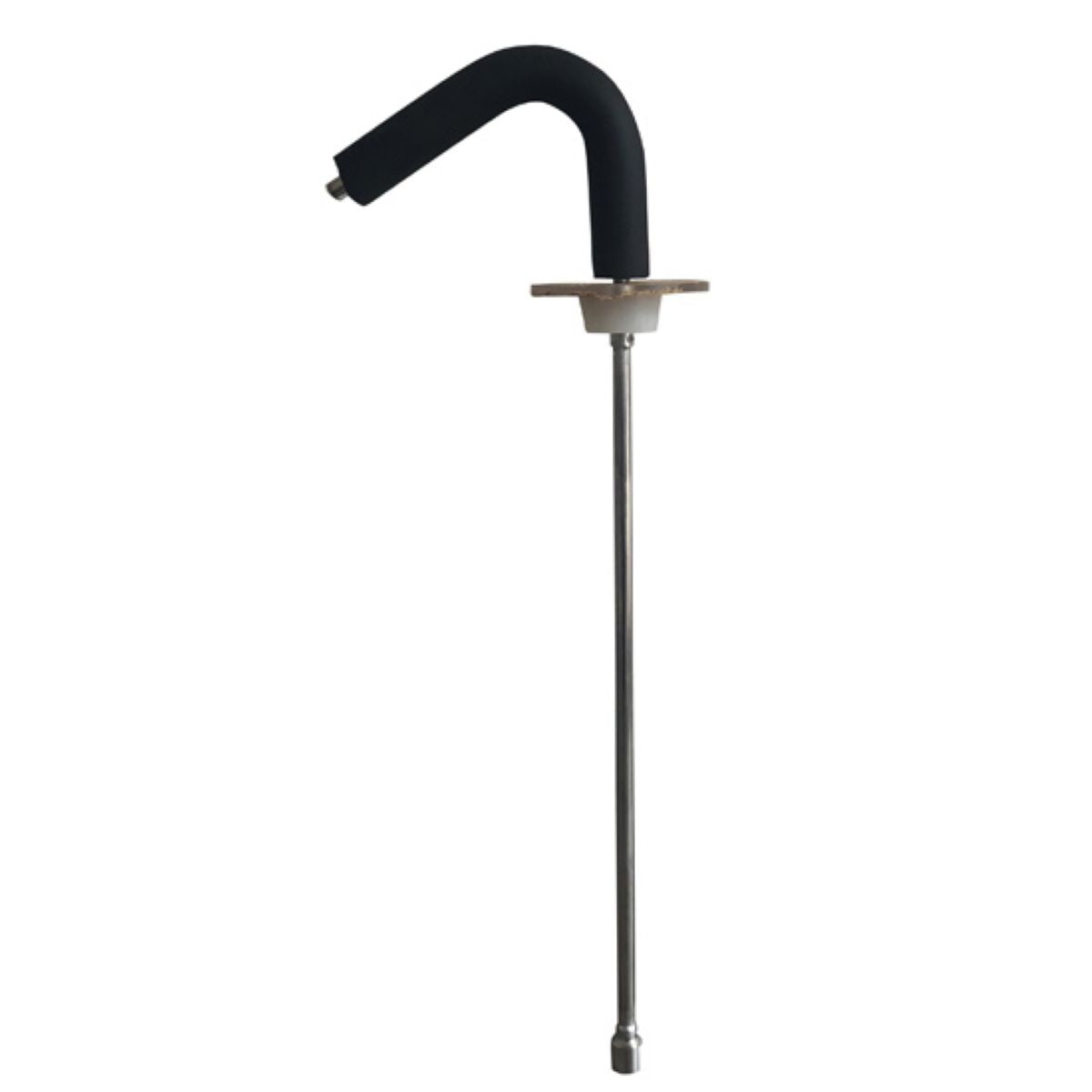

Walmay Liquid Nitrogen Extractor

Walmay Liquid Nitrogen Extractor

$199.00 AUD
$199.00 AUD
Sale Sold out
Shipping calculated at checkout.

Walmay Liquid Nitrogen Extractor for 20L & 30L Storage Dewars

A safe method of transferring liquid nitrogen from a 20L or 30L dewar to a Cryotherapy flask.

Features Include

  • Designed for the safe transfer of liquid nitrogen from a storage dewar to a cryotherapy flask
  • Double insulated handle for thermal protection
  • The see-through plastic protector disc covering the bung allows accurate insertion/withdrawal from the dewar

  • Extendable siphon tube and coned bung make it suitable for most 10L – 30L dewars.



Liquid Nitrogen Dewar Features

Pacific Medical Liquid Nitrogen Storage Dewars.

  • Made of a high-strength aluminium alloy.
  • Advanced powder coating technology.
  • Designed for low liquid nitrogen consumption.
  • 5-year vacuum warranty.
  • Each unit comes complete with safety lock lid, neck plug, leather (PU) bag & ladle.
  • Ergonomic design.

Liquid Nitrogen Dewar Specifications

Specifications 20L/30L Capacity

  • Capacity: 20L/30L
  • Weight (empty): 9.5kg/12.9kg
  • Neck opening: 50mm
  • Outer diameter of dewar: 394mm/462mm
  • Height of dewar: 672mm/706mm
  • Static evaporation rate: 0.12L/d
  • Static holding time: 168 days/254 days
  • Ladle outer diameter: 38mm
  • Ladle height: 120/276mm
  • No. ladles per dewar:3~6

Warranty & Maintenance

Warranty

  • Our dewars have a 5-year vacuum warranty

The warranty does not apply where
damage is caused by other factors,
including

  • Abuse, mishandling, accident or failure to follow operating instructions
  • Servicing or modification made by unauthorised parties
  • Shipment or other transport damage

Maintenance
It is important to keep your
storage of liquid nitrogen clean. Over time moisture in the Dewar can turn to
slush or ice crystals and lint & foreign material may accumulate and be
transferred into the Cryotherapy flask. Before filling the Dewar every second
time, swill the last 2L of nitrogen around the bottom and empty it outside. Failure to do this may introduce contaminating matter into the Cryotherapy flask
and stop the Regulator or Safety Valve from properly sealing, leading to
leaking or freezing.

External surfaces of the dewar may be cleaned with a neutral detergent & soft lo-lint cloth.

View full details
