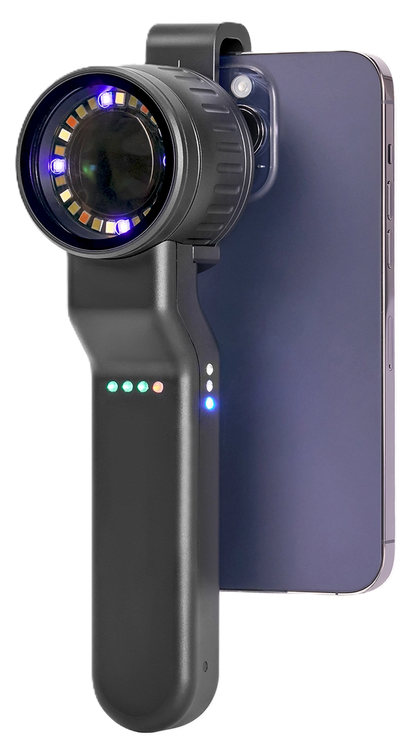

stratum | DE-4100PRO Dermatoscope
stratum | DE-4100PRO Dermatoscope

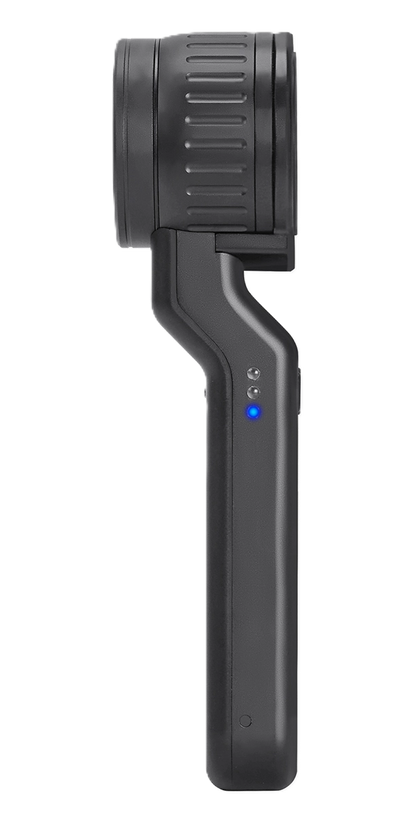

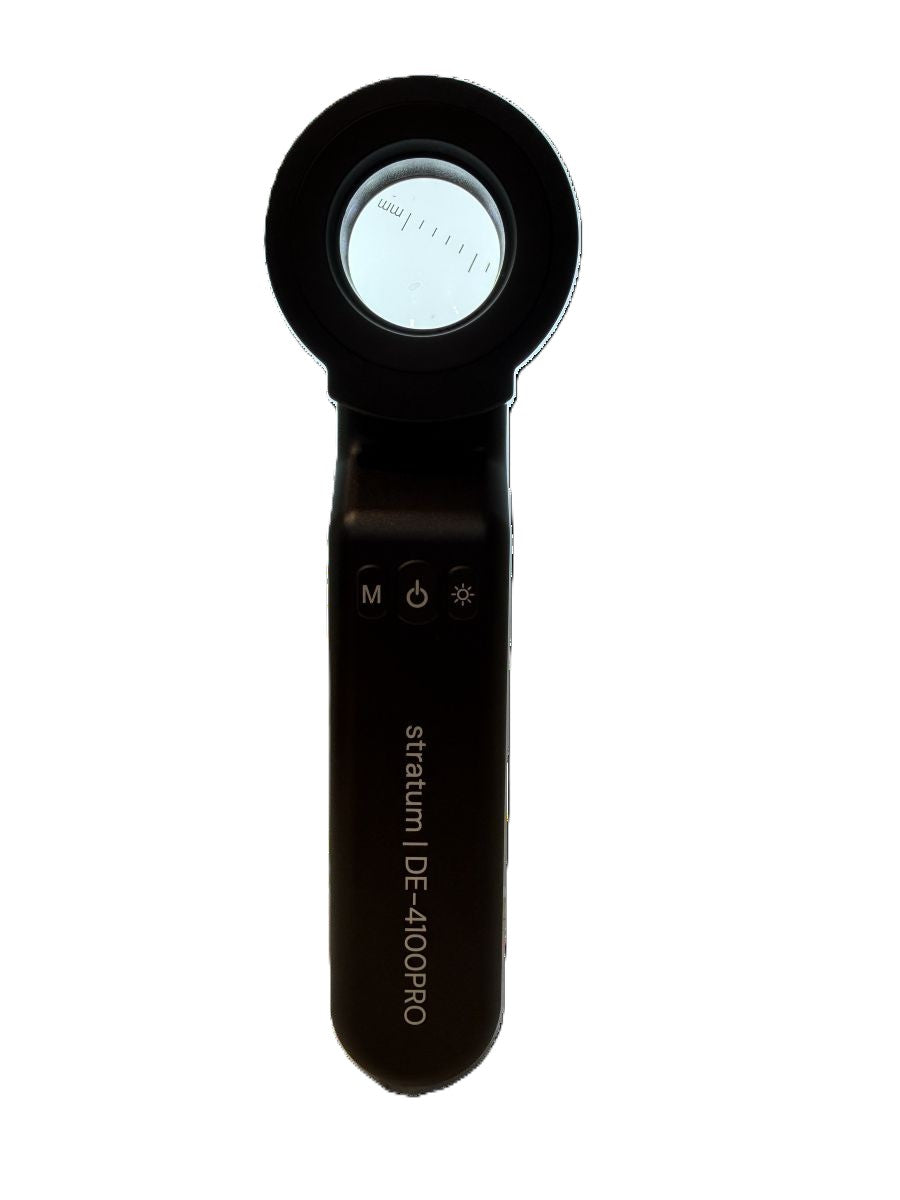

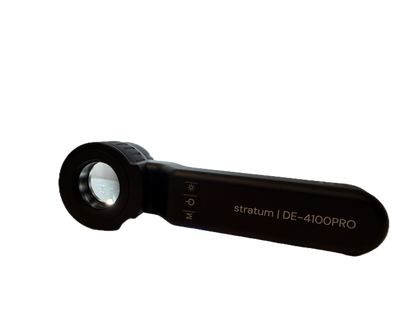

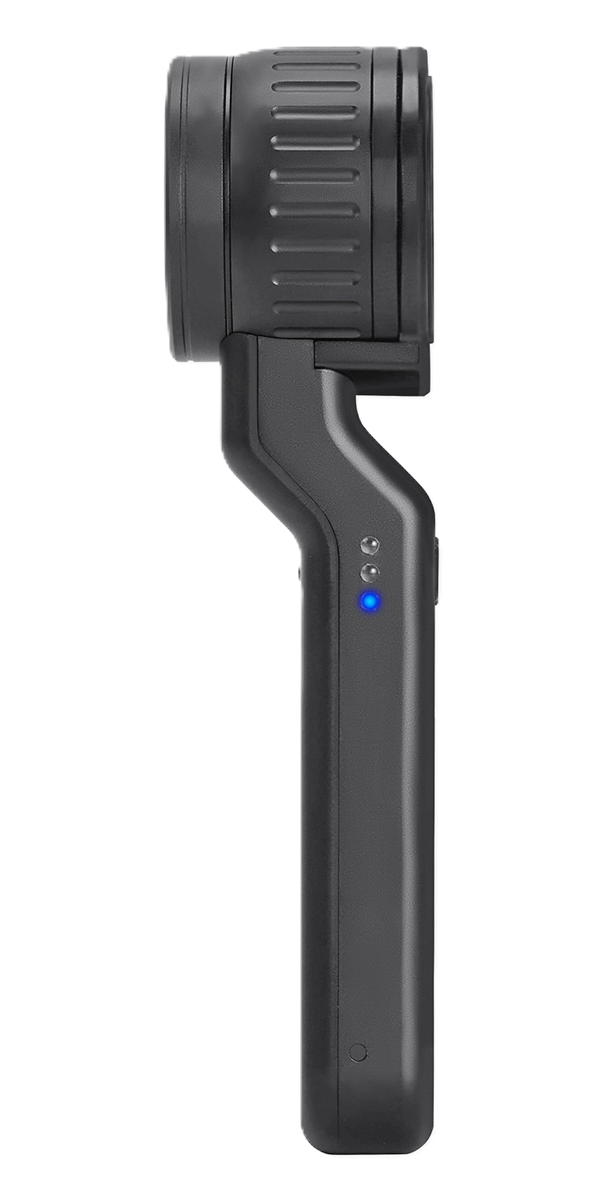

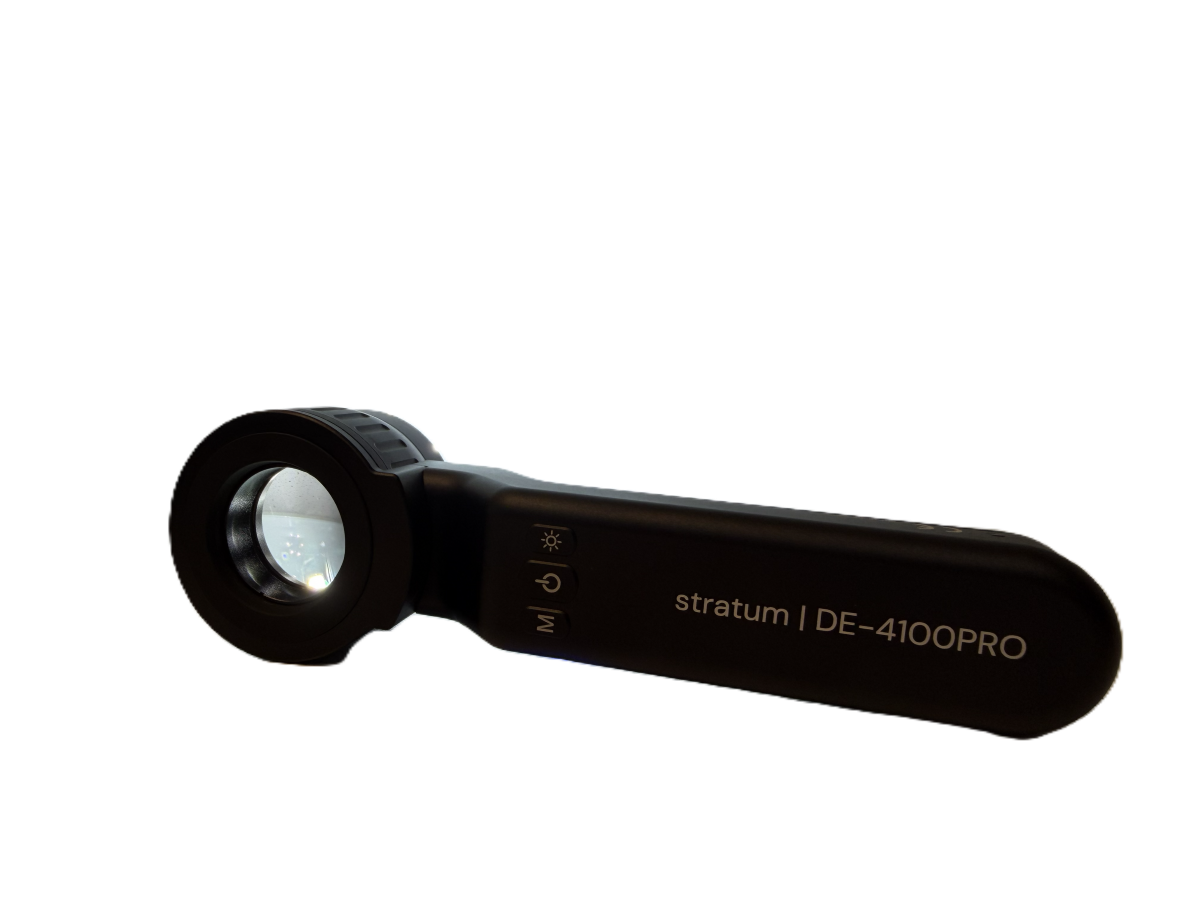

The stratum | DE-4100PRO is the ultimate professional dermatoscope including UV enhancement and pigment boost functions.

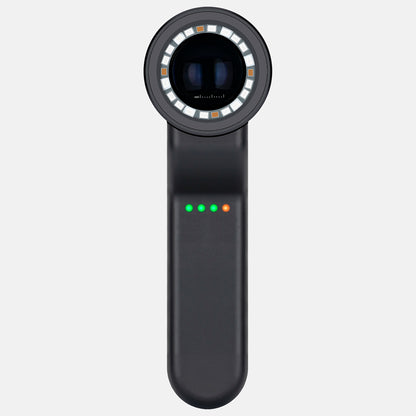

- Brightness intensity: Three levels of SMD LED light adjustment
- Polarisation: Polarised and non-polarised functions
- Pigment boost: Amber LED pigment boost function

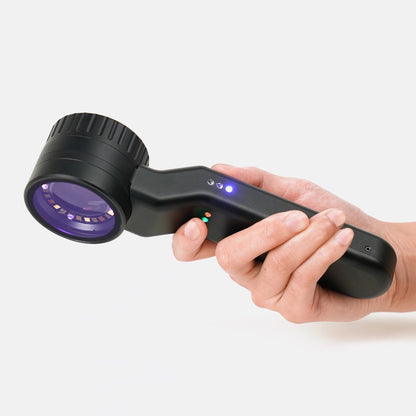

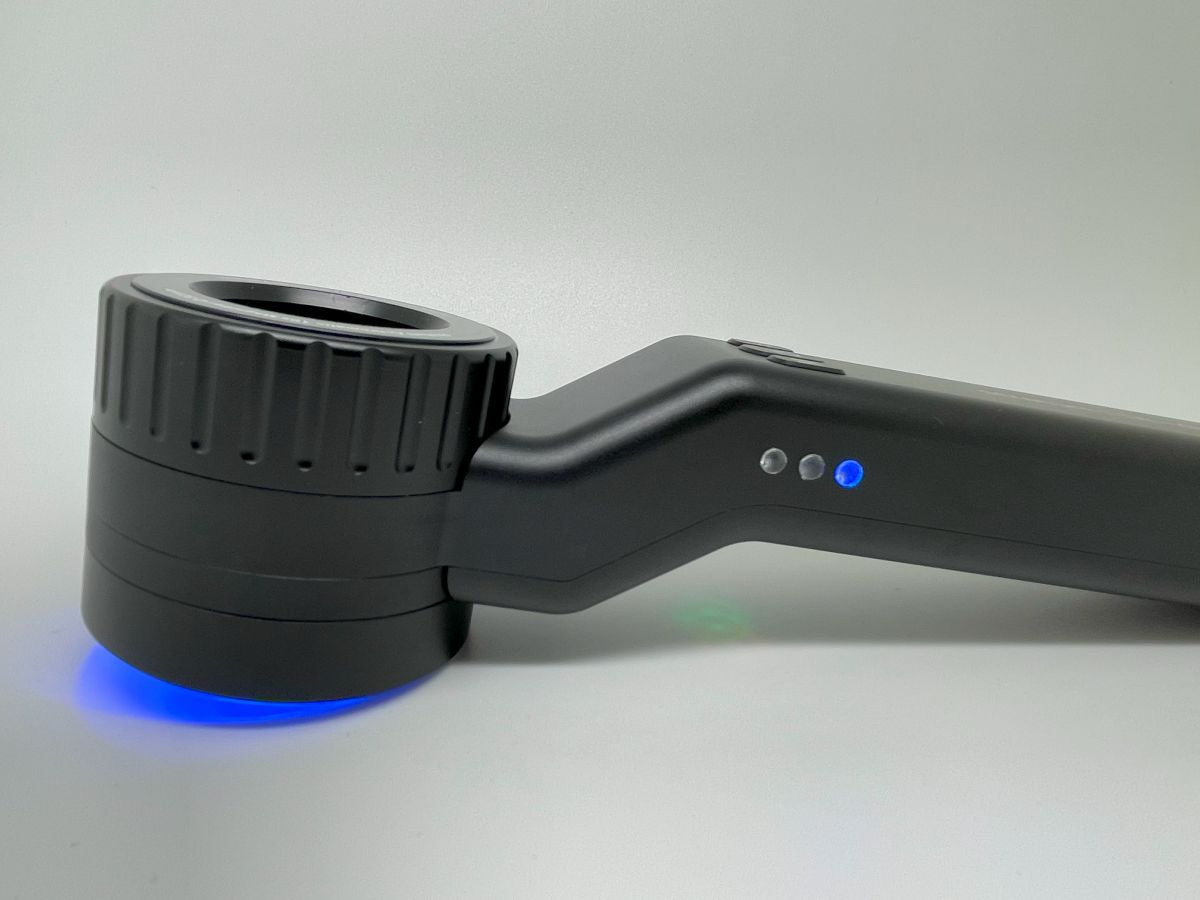

- UV illumination: 365nm UV light function

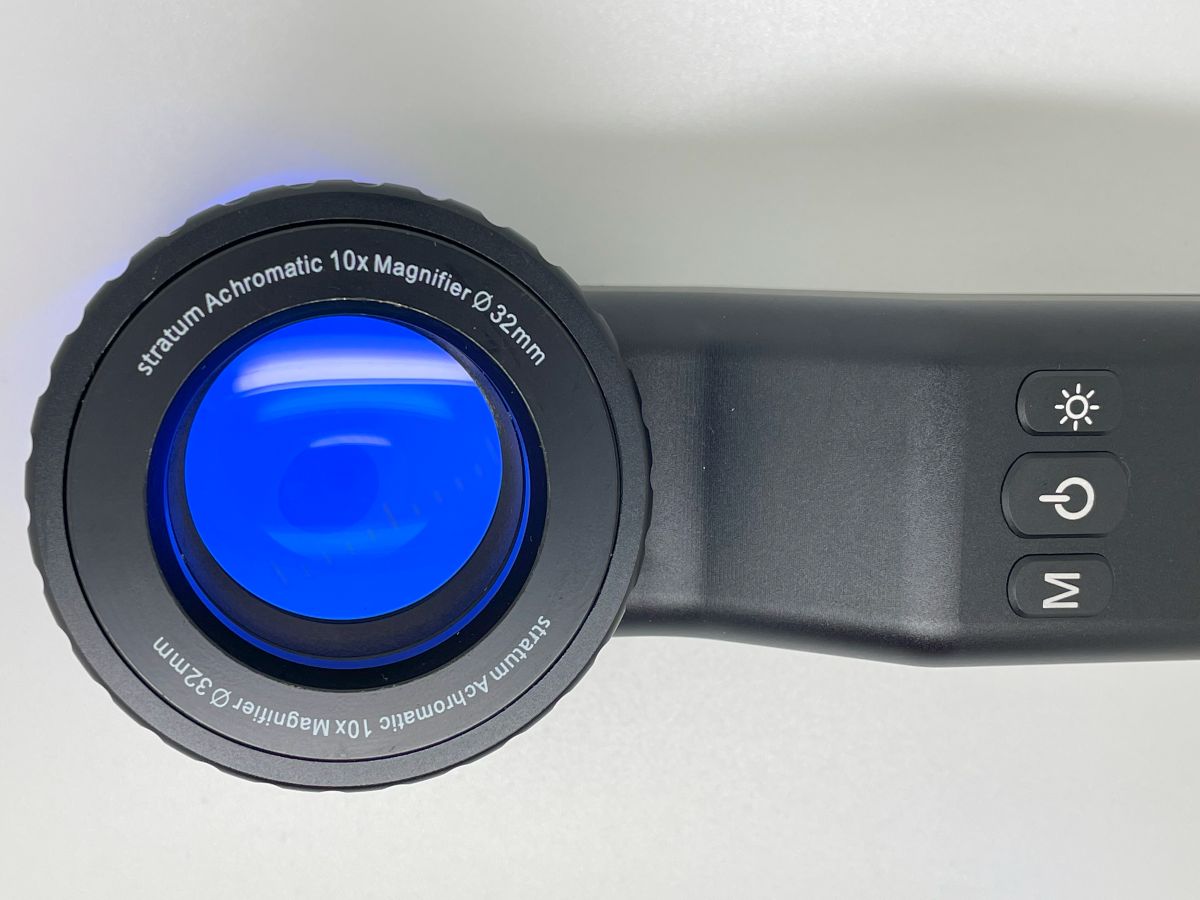

- Exceptional image: 10x image magnification & 32mm field of view
- All metal frame: Aerospace grade lightweight metal construction

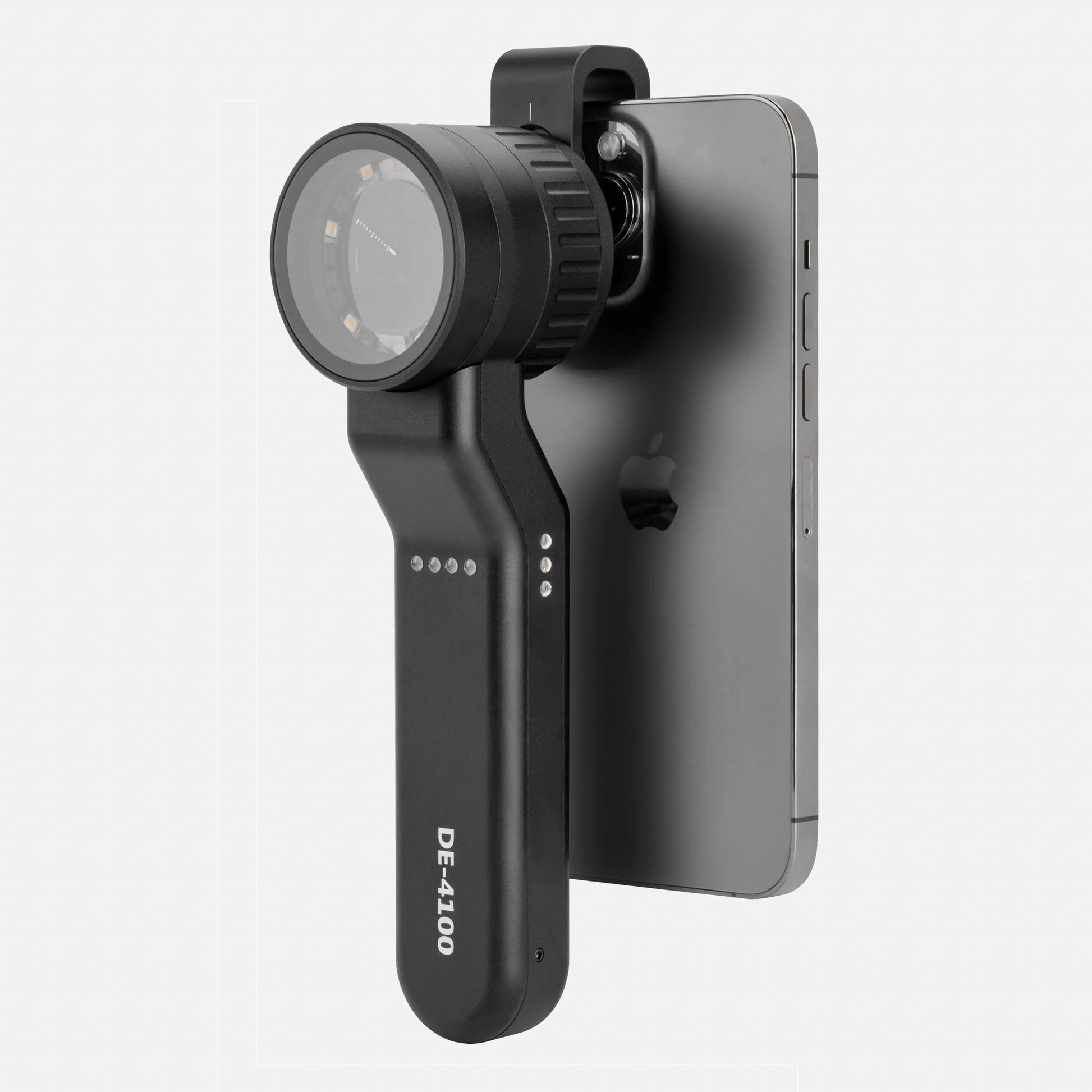

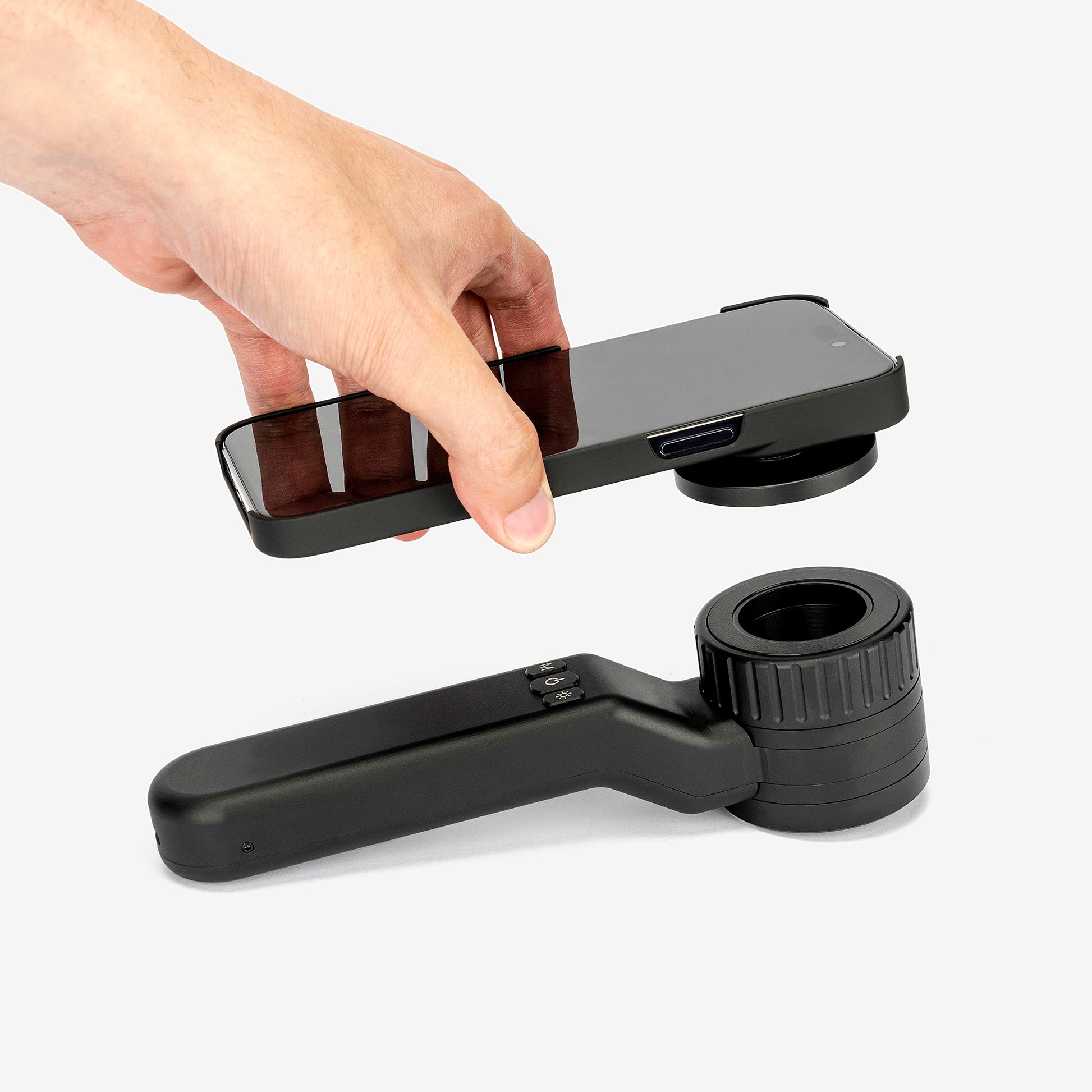

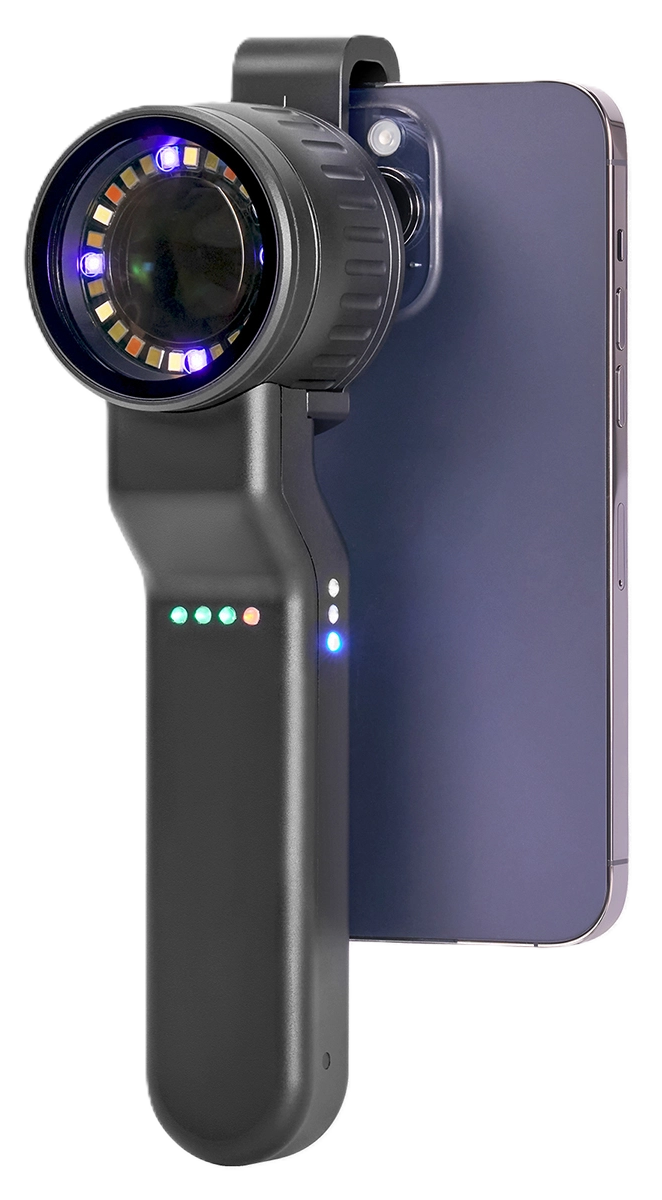

- Smart device compatible: Universal mobile device attachment included
- Charging: USB-C, 1000mAh lithium-ion battery
- Optical design: All glass, 4 elements of 3 groups
- Distortion: 5%
- Resolution: 300 LP/mm (Axis), 250 LP/mm (Edge)
- Constant working time: 6 - 8 hours
- Weight: 305g

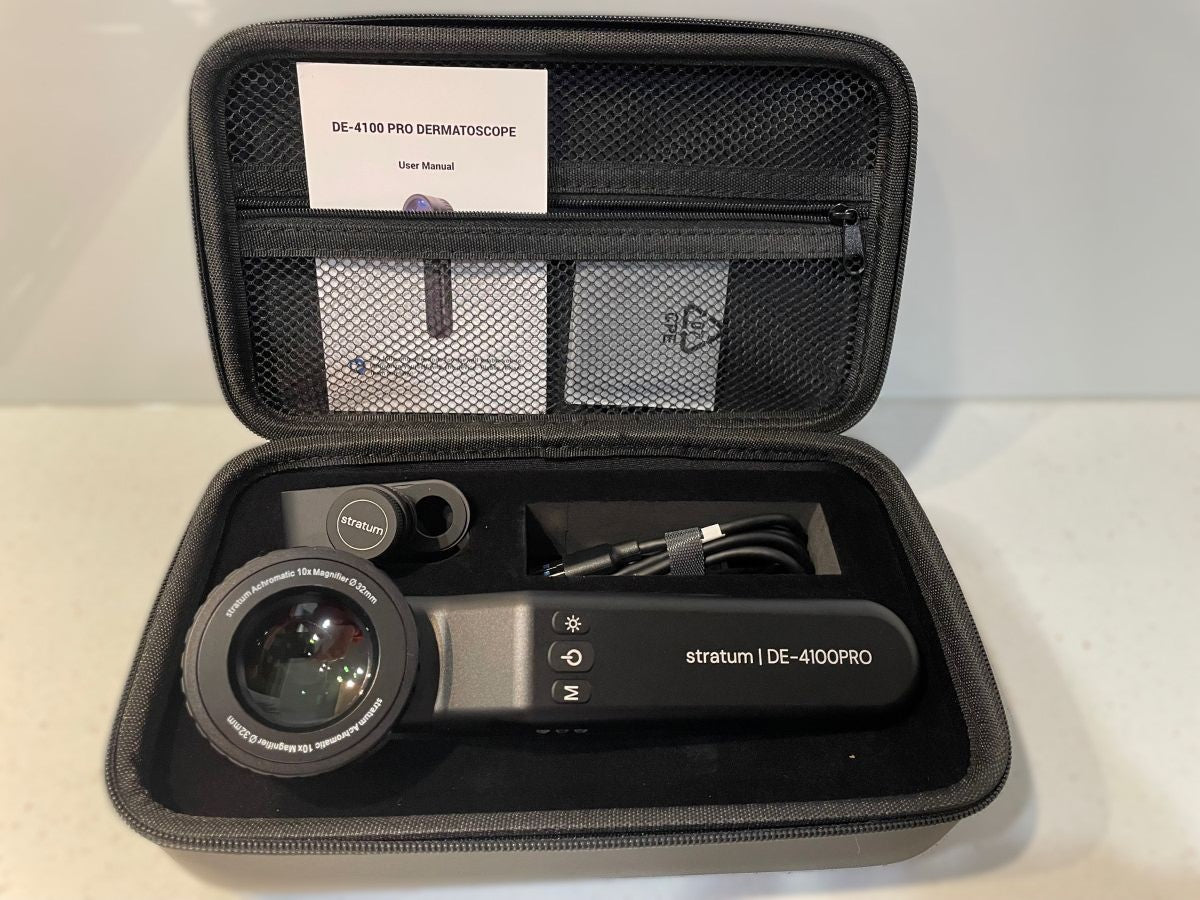

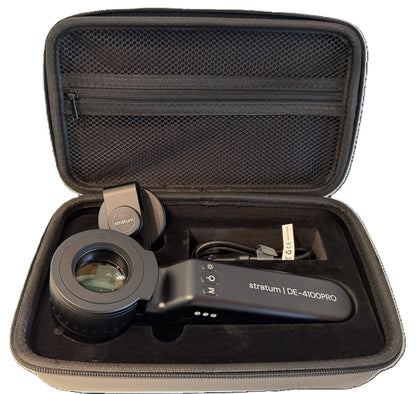

Package includes; stratum DE-4100PRO, universal phone adaptor with magnetic ring, USB-C cable, carry case, cleaning cloth, product manual.
Downloads
Click here to view the stratum DE-4100PRO Dermatoscope Brochure
Product Features
Product Features
Stratum dermatoscopes have been designed to be a high quality and yet affordable dermatoscope, developed in consultation with world leading experts in dermoscopy and imaging technology.
Stratum dermatoscopes offer a broad range of devices suitable for professional clinical operations.
Features include;
Sharp & Precise - Superior optical systems which minimises lense distortion to a class leading 5%. Manufactured with premium multi-coated and multi-element optics to render an exceptionally clear image to aid diagnostic accuracy.
Look Closer, See Deeper - Polarised light is included in all our dermatoscopes and helps to eliminate surface reflection, allowing visualisation of skin structures as well as blood vessels, collagen and pigmentation in the dermis.
Naked Eye Viewing - Stratum dermatoscopes may also be used under naked eye conditions* enabling them to be used to identify many skin issues commonly encountered in daily practice.
*Stratum | DE-400 is only suitable for use with a mobile device.
Materials & Care
Materials & Care
Stratum dermatoscopes consist of an all-metal aluminium aerospace grade frame and glass lense components.
The metal body and patient contact plate of stratum dermatoscopes should be disinfected using a wipe impregnated with 70% isopropyl alcohol, such as a pre-injection swab.
Ensure that no alcohol or disinfectant comes into contact with the optical LED module.
Never use an abrasive cloth or material, it is recommended that a low lint towel be used to wipe the device down after disinfecting.

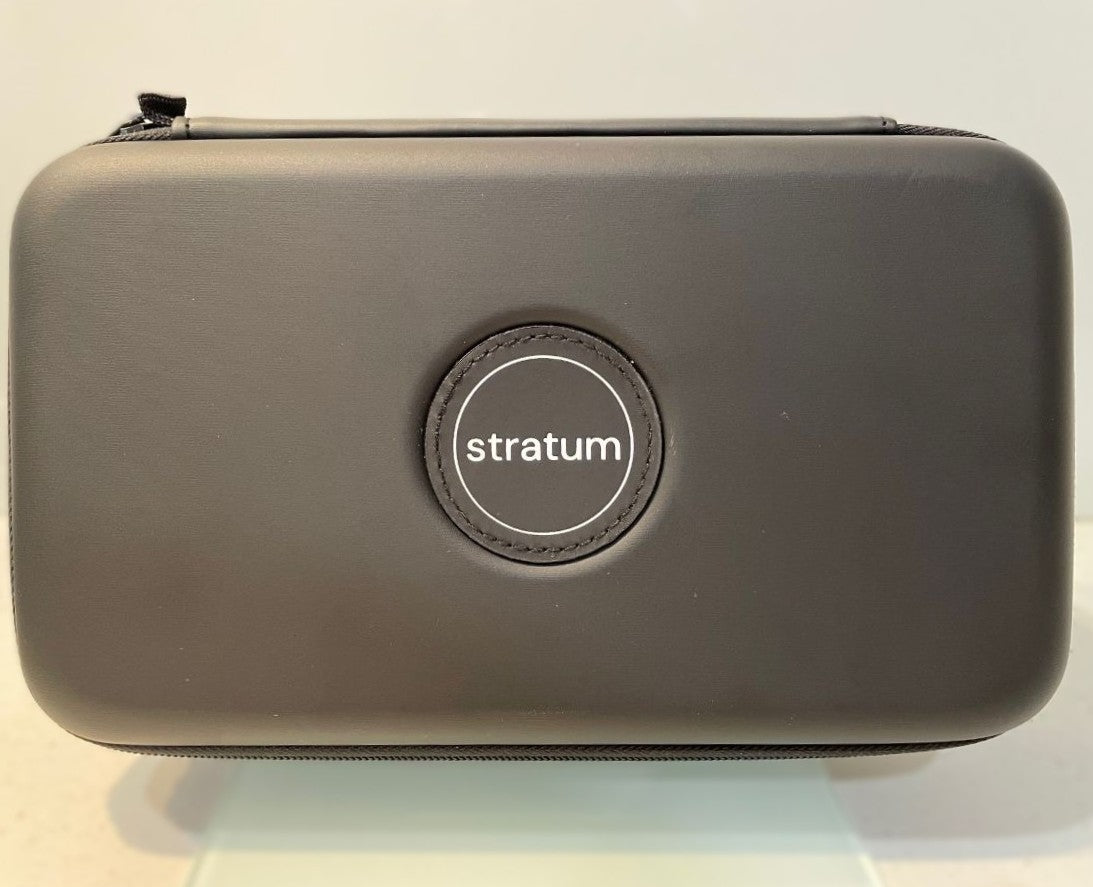

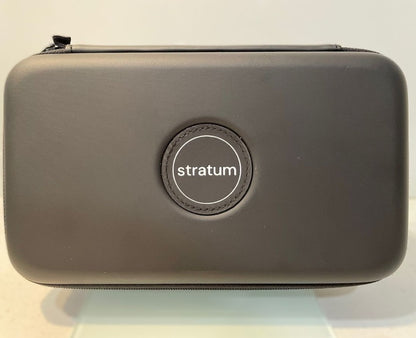

The outer carry case may be cleaned using a gentle neutral cleaner.
All packaging used for stratum dermatoscopes is bio-degradable and environmentally friendly.
Warranty
Warranty
Stratum dermatoscopes are backed by a five-year warranty against manufacturing defects as long as the device is used in accordance with the instructions for the use which it was designed.
Any alterations of the device, misuse or accidents such as falls cannot be covered under the warrnaty.
